Sale!

5 kW Sunora On-Grid inverter 1ph

Original price was: ₹28,000.00.Current price is: ₹25,200.00.(Inclusive of all taxes)

Quantity:

Warranty Assurance

Genuine Products

Direct Delivery

Certified Excellence

Warranty Information
10 Years Unconditional warranty
Share:

Description

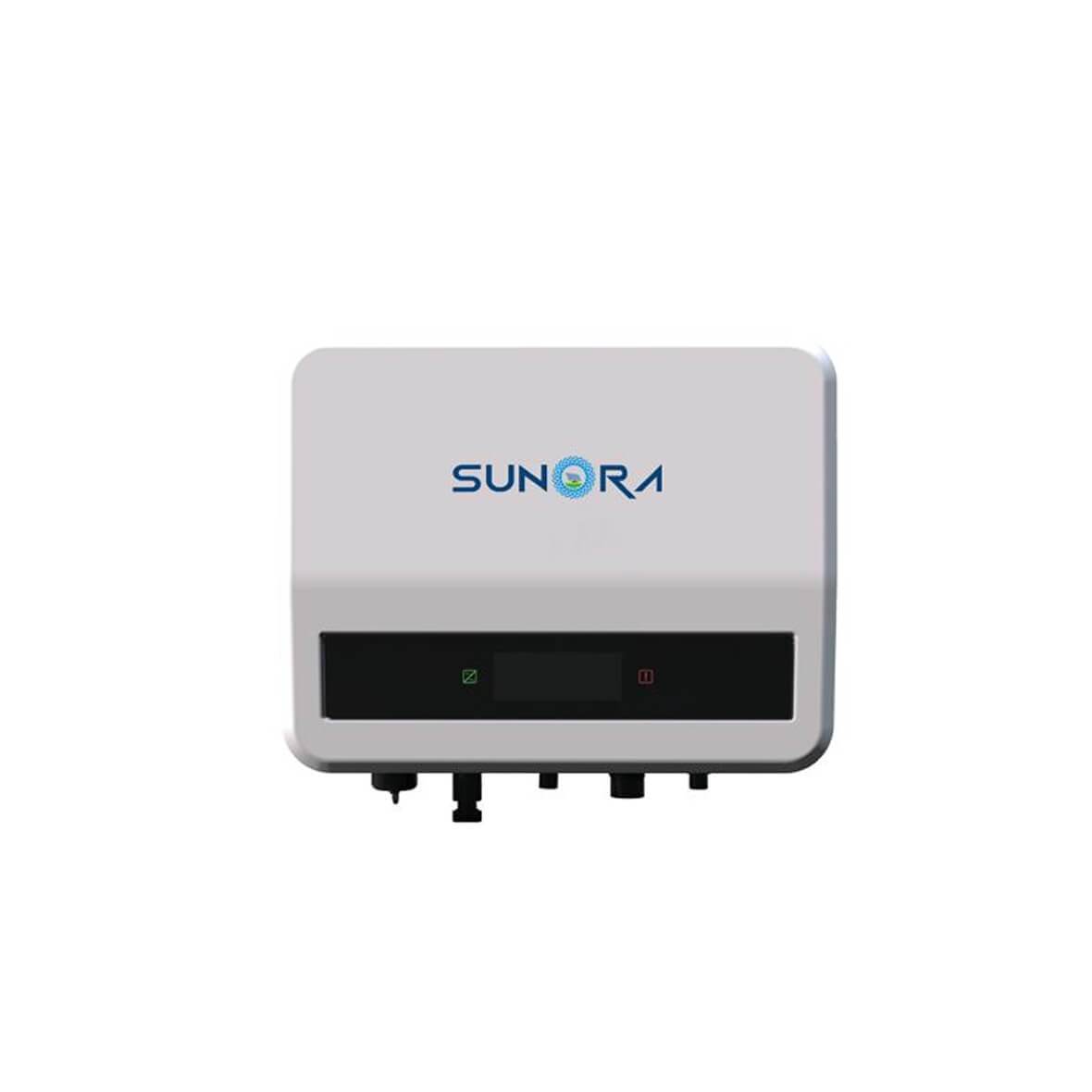

The 5 kW Sunora On-Grid Solar Inverter 1 Phase is designed to deliver efficient and stable performance for residential solar systems. This 5 kW on grid solar inverter 1 phase ensures seamless integration with the utility grid, converting solar energy into usable electricity with high precision. Equipped with advanced MPPT technology, it continuously tracks sunlight conditions to maximize power generation throughout the day.

This 1 Phase solar inverter offers real-time monitoring of voltage, current, and system performance, allowing homeowners to efficiently manage their energy consumption. The single-phase design is ideal for homes with moderate power requirements, ensuring consistent and reliable output without fluctuations.

Built with durable components and advanced safety features such as overload, short circuit, and temperature protection, this 5 kW on grid solar inverter 1 phase ensures long-lasting performance. Its compact design, easy installation, and low maintenance make it a cost-effective solution for reducing electricity bills and achieving energy independence.

Download Product Datasheet

Additional information

Max. PV Power

7.5 kW (supports 150% DC overload)

Voltage Range

MPPT operates between 140V and 1000V

MPPT Trackers

2 trackers with 1 string each

Max. Input Current

16A per MPPT

Nominal Power

5 kw

Max. Apparent Power

5.5 kVA

Nominal Voltage

230V/400V (3-phase)

Efficiency

98.4% Maximum; 99.9% MPPT efficiency

Standard Safety

Includes DC Reverse Polarity, AC Short-circuit, Anti-islanding, and Grid Monitoring

Dimensions

440 x 370 x 140 mm

Weight

16 kg

Durability

IP68 protection degree; operates from -25°C to +60°C

Cooling

Natural cooling for low noise (≤35 dB)

Communication

RS485 and USB are standard; Wi-Fi, 4G, or Bluetooth are optional

Warranty

10 Years

High Overload Capacity

It supports up to 150% DC overload, allowing you to connect up to 7.5kW of solar panels to the 5kW inverter to maximize energy harvest

Dual MPPT Precision

It features two independent MPP Trackers with a wide voltage range (140V–1000V) and 99.9% efficiency, ensuring optimal power collection even on complex roofs

Advanced Protection & Durability

The unit is built with an IP68 protection degree (highest dust/water resistance) and includes Type II AC/DC surge protection as standard

Smart Monitoring & Control

It includes an optional feed-in limitation function (anti-reverse power) and supports multiple communication methods including RS485, Wi-Fi, 4G, and Bluetooth
