N-TOPCon BIFACIAL GLASS TO GLASS MODULE

SUN132PXXX(XXX=610-635Wp)(210R)
SUN132TXXX(XXX=500-535Wp)
SUN108TXXX(XXX=400-440Wp)
SUN144TXXX(XXX=540-590Wp)
SUN120TXXX(XXX=460-490Wp)
SUN156PXXX(XXX=600-630Wp)

N-TopCon Bifacial Monocrystalline Module

SUN132PXXX(XXX=610-635Wp)(210R)

SUN108TXXX(XXX=400-440Wp)

SUN120TXXX(XXX=460-490Wp)

SUN132TXXX(XXX=500-535Wp)

SUN144TXXX(XXX=540-590Wp)

SUN156PXXX(XXX=600-630Wp)

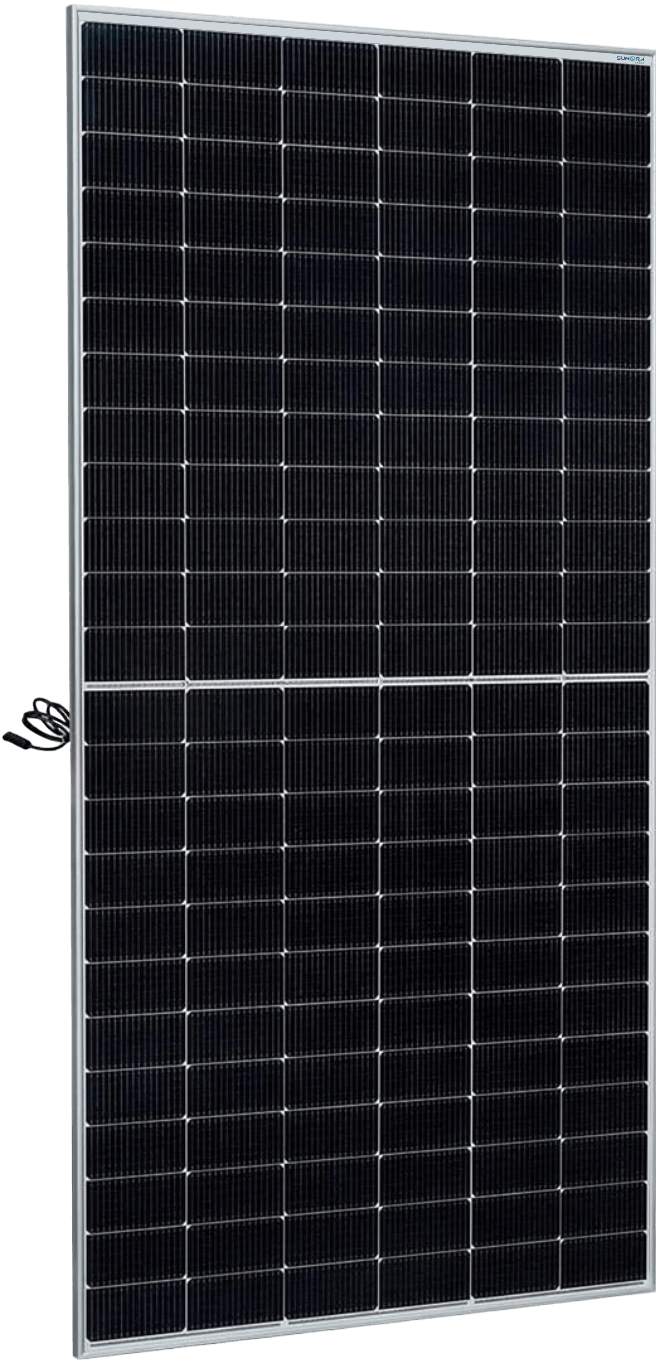

Solar Panel

Sunora Solar is committed to providing high-quality solar products in India, and provide world-class performance and mutually beneficial SUNORA SOLAR is a result of Unique Sun Power PVT.LTD effort to increase Customer Values beyond efficiency.

12 year warranty badge

12 YEARS WARRANTY FOR MATERIALS AND PROCESSING

30 year warranty badge

30 YEARS WARRANTY FOR LINEAR POWER OUTPUT

Sunora Solar Favicon

Elite Pro+ N Type Bi Facial Solar Module

Sunora Solar is committed to providing high-quality solar products in India, and provide world-class performance and mutually beneficial SUNORA SOLAR is a result.

N-TopCon Key Features

Higher Power Output

Module power increases by 5-25% generally, bringing significantly lower LCOE and higher IRR. 0-5w positive tolerance output warranty.

Optimal Choice for Ultra-large Power Plants

Contribute to Lower BOS cost and LCOE.

ZERO LID

N-Type cell is characterized by "0" LID, which generates more power.

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and material control.

Durability Against Extreme Environmental Conditions

High salt mist and ammonia resistance certified by TUV NORD. Lower temperature coecient and operating temperature.

More Outstanding Low-light Performance

Higher power output even under low-light environments like on cloudy days

Enhanced Mechanical Load

Certified to withstand: wind load (2400 Pa) and snow load (5400 Pa).

EL Full Inspection

Dual-stage 100% EL Inspection.

ELECTRICAL CHARACTERISTICS (STC*)

Open Circuit Volatge(Voc/V)

37.23 ~ 41.2

Maximum system voltage

1500 VDC

Module Efficiency(%)

20.47 ~ 22.52%

Fuse Rating (A)

30

WORKING CHARACTERISTICS (NOCT*)

Rated Power in Watts-Pmax(Wp)

300Wp ~ 330Wp

Open Circuit Voltage-Voc(V)

35.37 ~ 39.14%

Max. Power Current-Impp(A)

10.41 ~ 10.10%

Power tolerance

0 ~ +3%

MECHANICAL
CHARACTERISTICS

Number of cells

108pcs

Weight(kg)

26

Type of frame

Anodized Aluminum Alloy

Type of cell

N-TOPCon Mono

ELECTRICAL CHARACTERISTICS (STC*)

Open Circuit Volatge(Voc/V)

41.6 ~ 45.26

Maximum system voltage

1500 VDC

Module Efficiency(%)

21.28 ~ 22.67

Fuse Rating (A)

30

WORKING CHARACTERISTICS (NOCT*)

Rated Power in Watts-Pmax(Wp)

345 ~ 368

Open Circuit Voltage-Voc(V)

39.52 ~ 43.00

Max. Power Current-Impp(A)

10.42 ~ 10.29

Power tolerance

0 ~ +3%

MECHANICAL
CHARACTERISTICS

Number of cells

120pcs

Weight(kg)

27

Type of frame

Anodized Aluminum Alloy

Type of cell

N-TOPCon Mono

ELECTRICAL CHARACTERISTICS (STC*)

Open Circuit Volatge(Voc/V)

45.5 ~ 49.42

Maximum system voltage

1500 VDC

Module Efficiency(%)

21.06 ~ 22.53

Fuse Rating (A)

30

WORKING CHARACTERISTICS (NOCT*)

Rated Power in Watts-Pmax(Wp)

375 ~ 401

Open Circuit Voltage-Voc(V)

39.52 ~ 43.00

Max. Power Current-Impp(A)

10.44 ~ 10.30

Power tolerance

0 ~ +3%

MECHANICAL
CHARACTERISTICS

Number of cells

132pcs

Weight(kg)

30

Type of frame

Anodized Aluminum Alloy

Type of cell

N-TOPCon Mono

ELECTRICAL CHARACTERISTICS (STC*)

Open Circuit Volatge(Voc/V)

49.51 ~ 50.59

Maximum system voltage

1500 VDC

Module Efficiency(%)

20.89 ~ 22.67

Fuse Rating (A)

30

WORKING CHARACTERISTICS (NOCT*)

Rated Power in Watts-Pmax(Wp)

405 ~ 424

Open Circuit Voltage-Voc(V)

47.03 ~ 48.06

Max. Power Current-Impp(A)

10.38 ~ 10.57

Power tolerance

0 ~ +3%

MECHANICAL
CHARACTERISTICS

Number of cells

144pcs

Weight(kg)

32.8

Type of frame

Anodized Aluminum Alloy

Type of cell

N-TOPCon Mono

ELECTRICAL CHARACTERISTICS (STC*)

Open Circuit Volatge(Voc/V)

54.1 ~ 55.86

Maximum system voltage

1500 VDC

Module Efficiency(%)

21.46 ~ 22.52

Fuse Rating (A)

30

WORKING CHARACTERISTICS (NOCT*)

Rated Power in Watts-Pmax(Wp)

450 ~ 473

Open Circuit Voltage-Voc(V)

51.39 ~ 53.06

Max. Power Current-Impp(A)

10.61 ~ 10.89

Power tolerance

0 ~ +3%

MECHANICAL
CHARACTERISTICS

Number of cells

156pcs

Weight(kg)

34.50

Type of frame

Anodized Aluminum Alloy

Type of cell

N-TOPCon Mono

Certificates

1 IEC TS 62804 PID

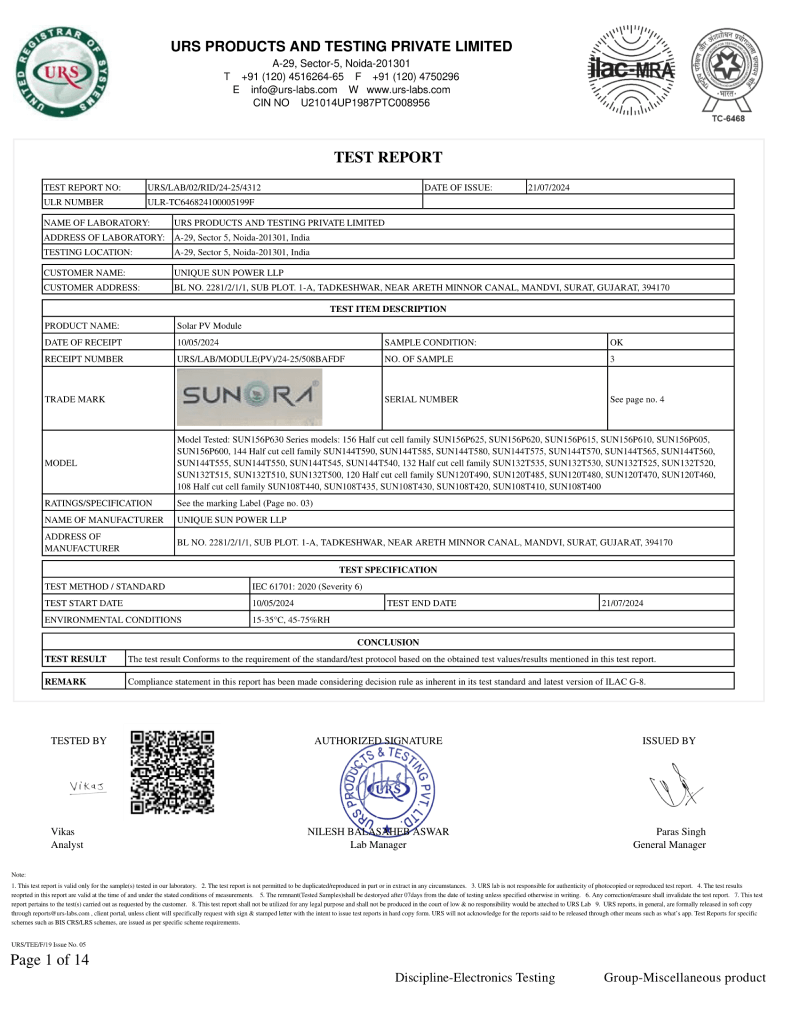

2 IEC 61701 SALT MIST
3 IEC 61853-1 IRRADIANCE

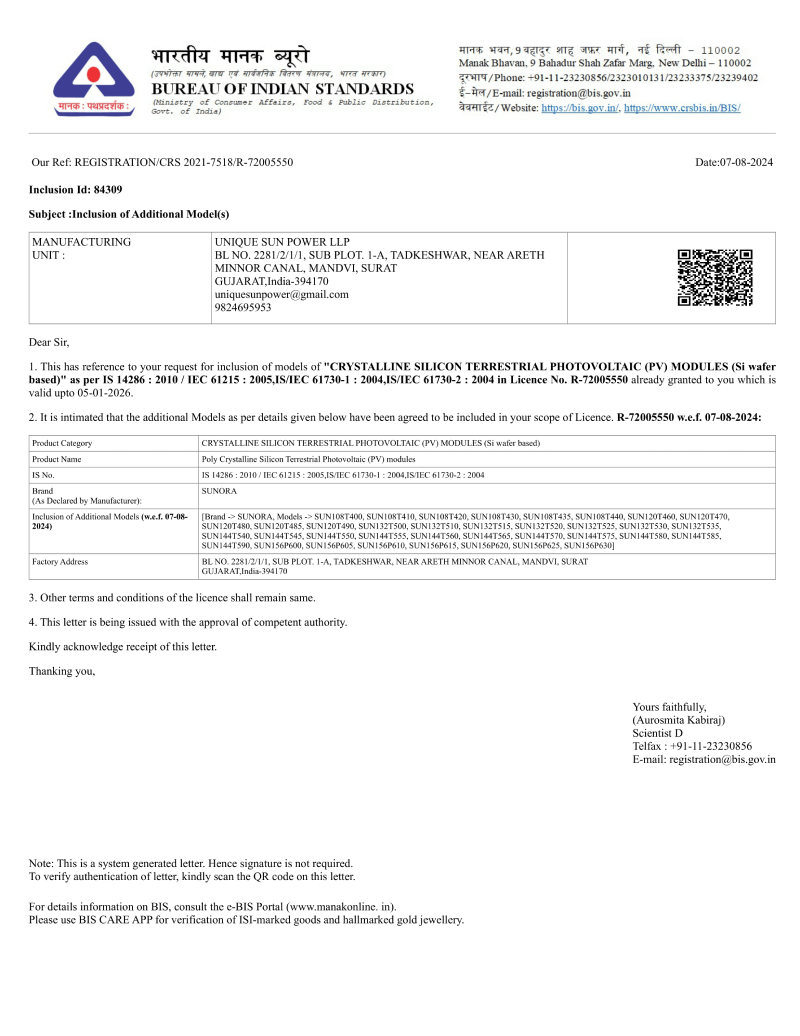

Letter- 84309

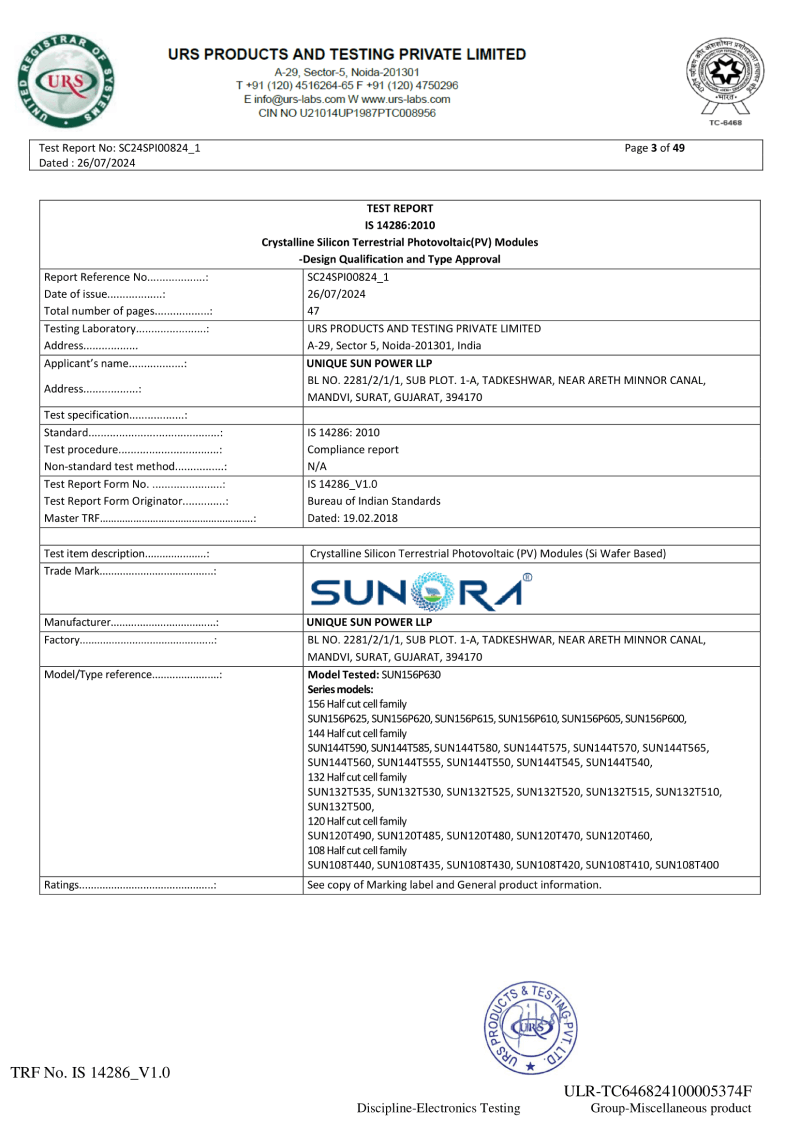

4 IS 14286

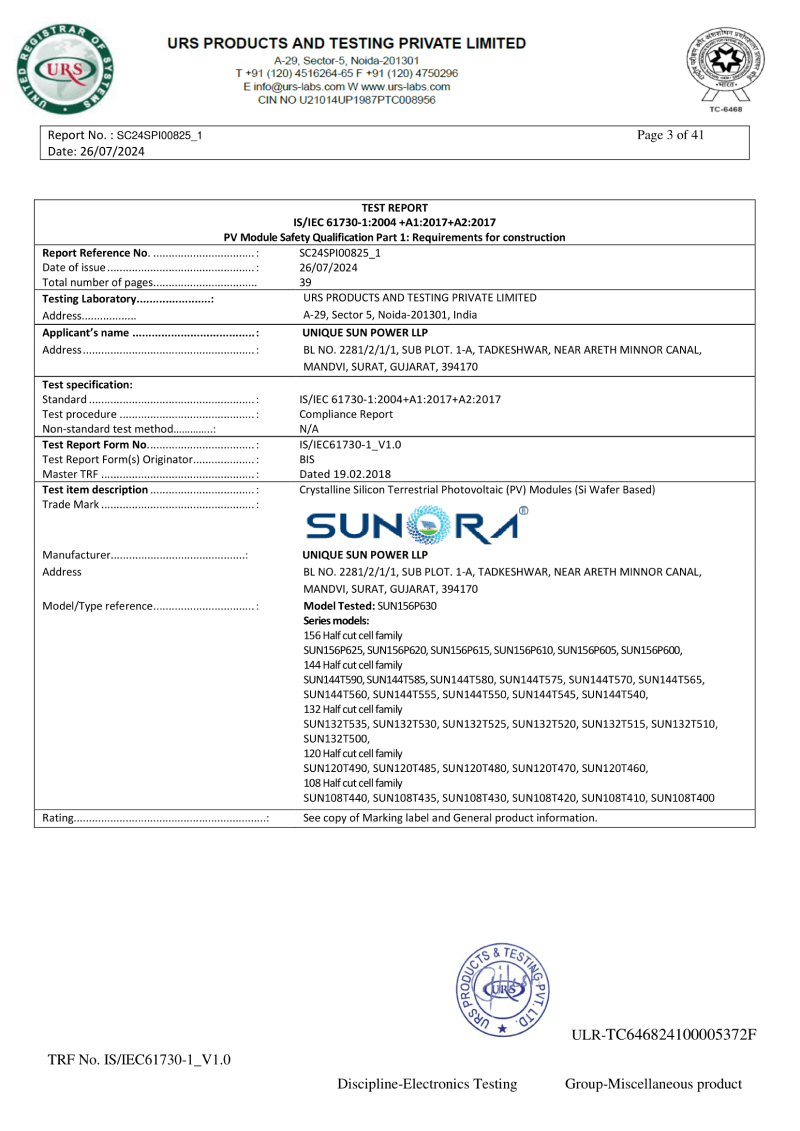

5 IEC 61730-1

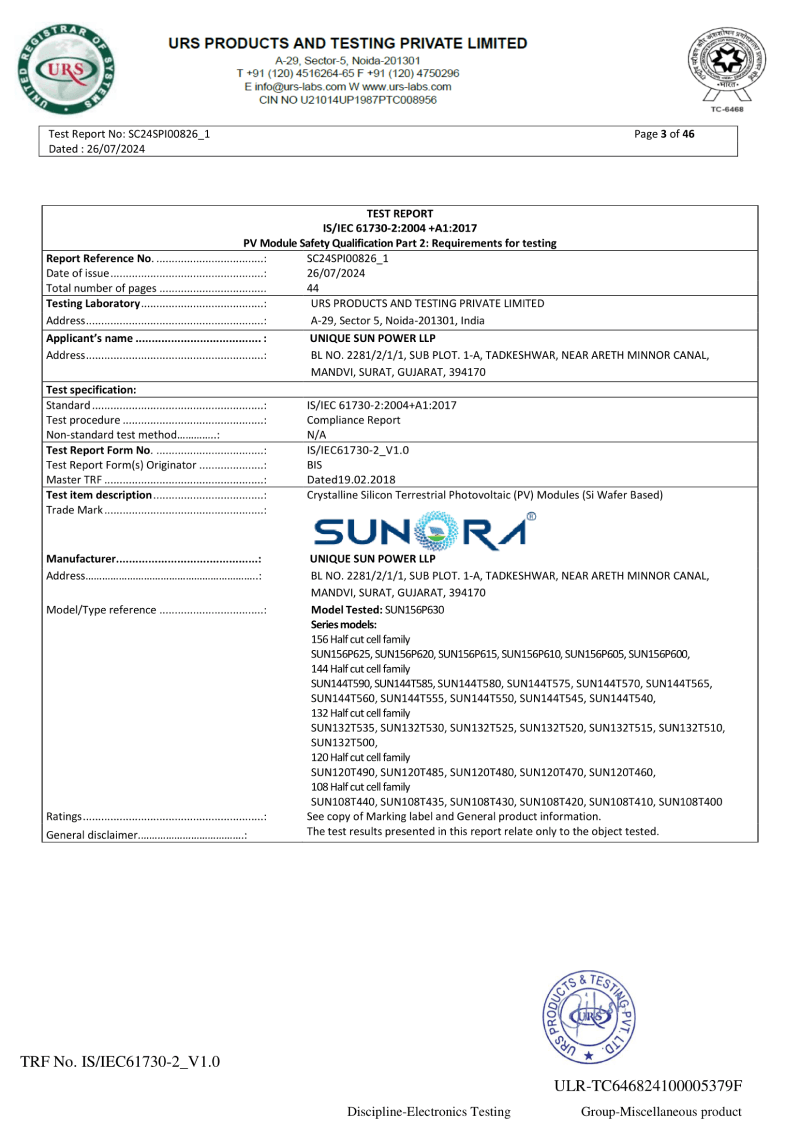

6 IEC 61730-2

Renewable and Sustainable Power Energy Sources
