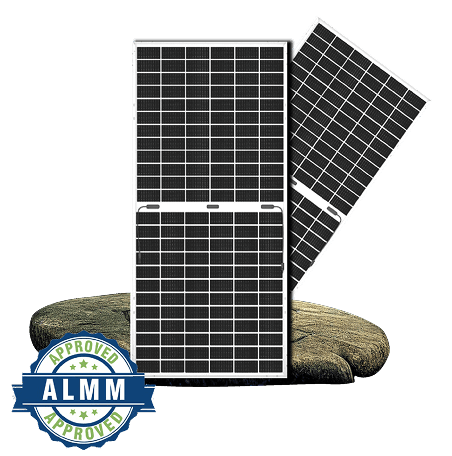

BI-Facial Mono PERC HC Module

SUN108PXXX(XXX=400-420Wp)

SUN132PXXX(XXX=470-505Wp)

SUN120PXXX(XXX=435-465Wp)

SUN144PXXX(XXX=520-550Wp)

BI-Facial Mono PERC HC Module

SUN108PXXX(XXX=400-420Wp)

SUN120PXXX(XXX=435-465Wp)

SUN132PXXX(XXX=470-505Wp)

SUN144PXXX(XXX=520-550Wp)

BI-Facial Mono PERC HC Module

SUN 144PXXX(XXX=520-550Wp)

Sunora Solar is committed to providing high-quality solar products in India, and provide world-class performance and mutually beneficial SUNORA SOLAR is a result of Unique Sun Power PVT.LTD effort to increase Customer Values beyond efficiency.

12 year warranty badge

12 YEARS WARRANTY FOR MATERIALS AND PROCESSING

30 year warranty badge

30 YEARS WARRANTY FOR LINEAR POWER OUTPUT

Sunora Solar Favicon

Elite Pro Mono PERC Solar Module

Sunora Solar is committed to providing high-quality solar products in India, and provide world-class performance and mutually beneficial SUNORA SOLAR is a result.

Industry leading protection
High Saving
High Saving
Lower LCOE, reduced BOS cost, shorter payback time
Minimum Micro-Crack Input
Minimum Micro-Crack Input
Power Gain Benefit
Power Gain Benefit
Up to 30% power gain
Low-Light Performance
Low-Light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment
Pid Resistance
Pid Resistance
Excellent Anti-PID Performance gurantee limited power degradation for mass production
Excellent Efficiency
Excellent Efficiency
Excellent module conversion efficiency of up to 21.03%

MECHANICAL SPECIFICATION

Solar Cells

144 monocrystalline Silicon(PERC), Multi BB

Series Fuse Rating

25 A

Weight

20Kg

Application Class

Class A

OPERATING PARAMETERS

Fire Rating

UL Type 3

Maximum System Voltage

DC1500V ( IEC/UL)

Operational Temperature

-40C ~ +85C

Power Output Tolerance

0 ~ +5W

ELECTRICAL CHARACTERISTICS

Maximum Power ( Pmax/W)

400 ~ 420

Open Circuit Volatge(Voc/V)

37.23 ~ 38.15

Module Efficiency (%)

20.49 ~ 21.52

Cerrent at Maximum Power (Imp/A)

13.01 ~ 13.33

MECHANICAL SPECIFICATION

Solar Cells

120 monocrystalline Silicon(PERC), Multi BB

Series Fuse Rating

25 A

Weight

24.08Kg

Application Class

Class A

OPERATING PARAMETERS

Fire Rating

UL Type 3

Maximum System Voltage

DC1500V ( IEC/UL)

Operational Temperature

-40C ~ +85C

Power Output Tolerance

0 ~ +5W

ELECTRICAL CHARACTERISTICS

Maximum Power ( Pmax/W)

435 ~ 465

Open Circuit Volatge(Voc/V)

41.10 ~ 41.70

Module Efficiency (%)

20.14 ~ 21.53

Cerrent at Maximum Power (Imp/A)

12.52 ~ 13.12

MECHANICAL SPECIFICATION

Solar Cells

132 monocrystalline Silicon(PERC), Multi BB

Series Fuse Rating

25 A

Weight

26.05Kg

Application Class

Class A

OPERATING PARAMETERS

Fire Rating

UL Type 3

Maximum System Voltage

DC1500V ( IEC/UL)

Operational Temperature

-40C ~ +85C

Power Output Tolerance

0 ~ +5W

ELECTRICAL CHARACTERISTICS

Maximum Power ( Pmax/W)

470 ~ 505

Open Circuit Volatge(Voc/V)

44.86 ~ 45.56

Module Efficiency (%)

19.81 ~ 21.29

Cerrent at Maximum Power (Imp/A)

12.56 ~ 13.11

MECHANICAL SPECIFICATION

Solar Cells

144 monocrystalline Silicon(PERC), Multi BB

Series Fuse Rating

25 A

Weight

~ 28Kg

Application Class

Class A

OPERATING PARAMETERS

Fire Rating

UL Type 3

Maximum System Voltage

DC1500V ( IEC/UL)

Operational Temperature

-40C ~ +85C

Power Output Tolerance

0 ~ +5W

ELECTRICAL CHARACTERISTICS

Maximum Power ( Pmax/W)

520 ~ 550

Open Circuit Volatge(Voc/V)

49.10 ~ 49.70

Module Efficiency (%)

20.18 ~ 21.34

Cerrent at Maximum Power (Imp/A)

12.60 ~ 13.14
