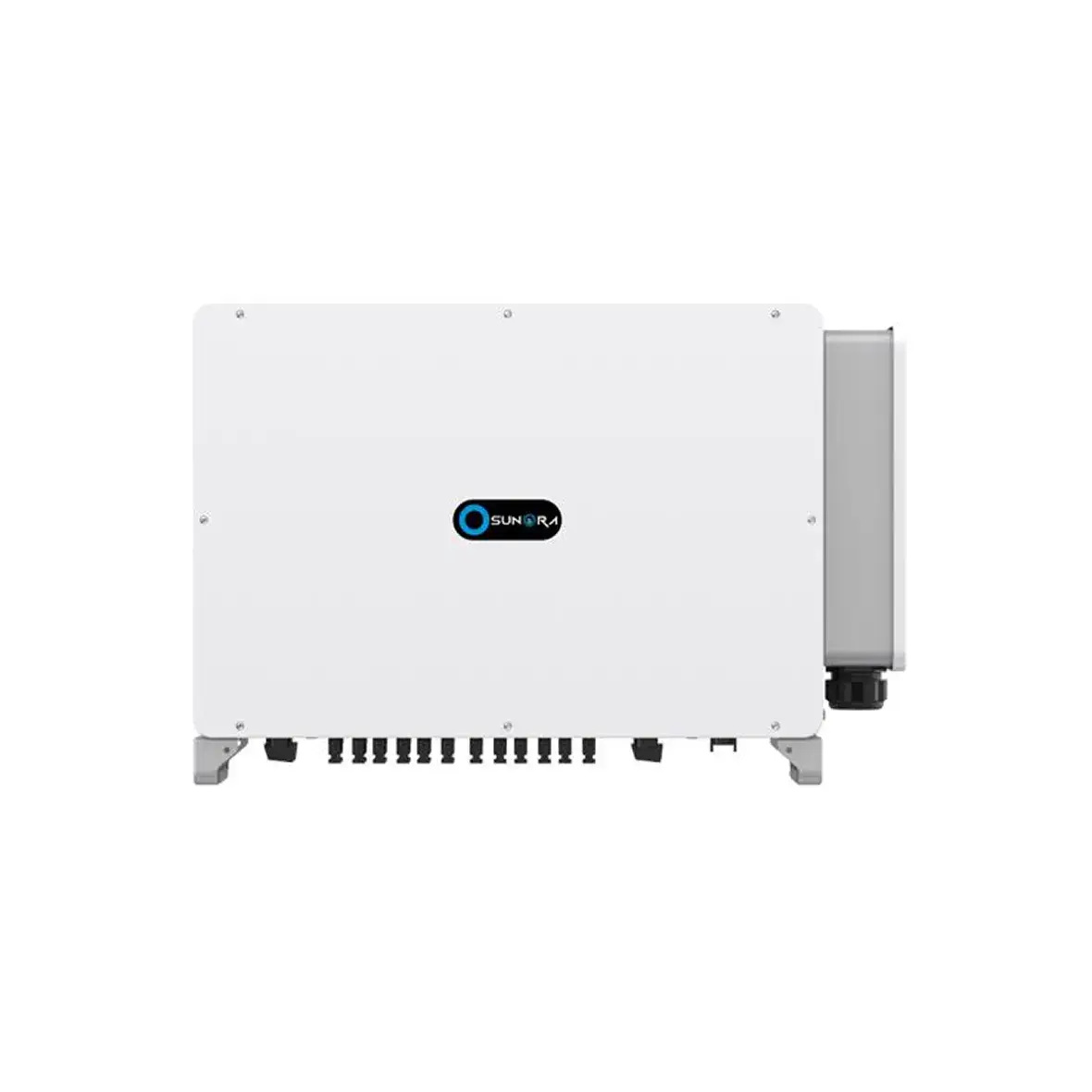

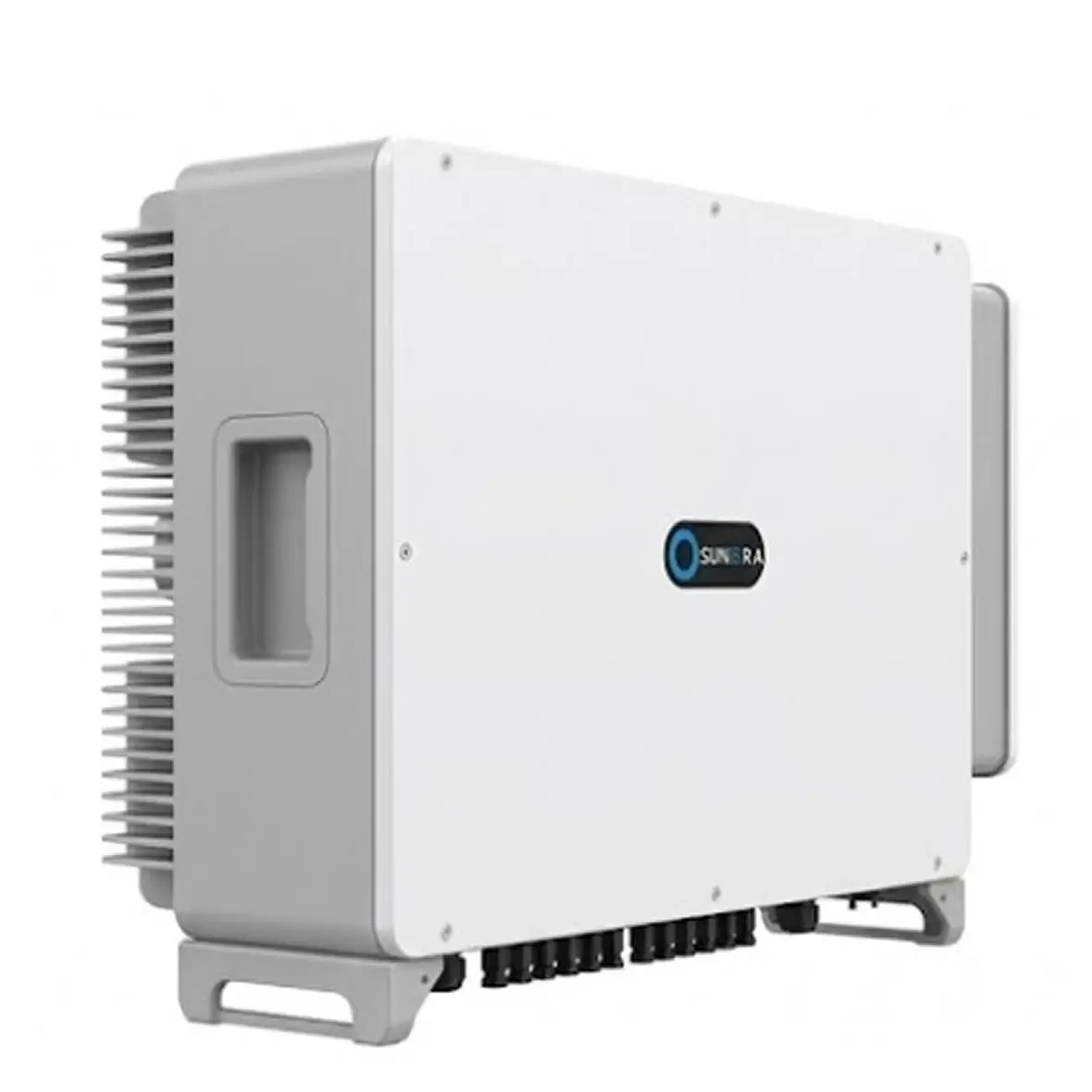

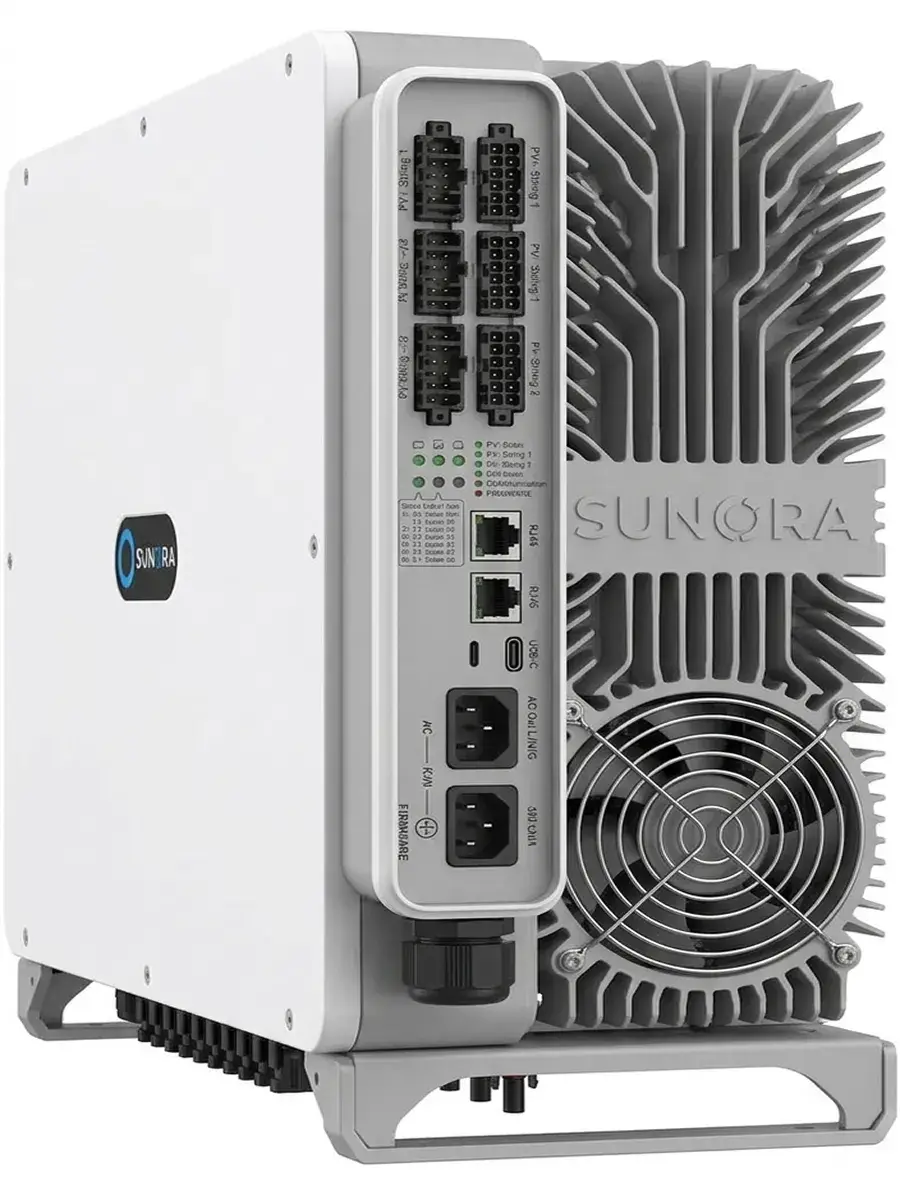

110 kW Sunora On-Grid Inverter 3ph

Original price was: ₹282,333.33.Current price is: ₹254,100.00.(Inclusive of all taxes)

Quantity:

Warranty Assurance

Genuine Products

Direct Delivery

Certified Excellence

Warranty Information
10 Years Unconditional warranty
Share:

Description

The 110 kW Sunora On-Grid Solar Inverter 3 Phase is a high-capacity and high-efficiency solution designed for large-scale commercial and industrial solar installations. This 110 kW 3 Phase on grid solar inverter ensures seamless integration with the power grid, delivering stable and reliable energy conversion for maximum performance. Equipped with advanced MPPT technology, it continuously tracks solar input to optimize power generation even under varying sunlight conditions.

This 3 Phase solar inverter supports real-time monitoring of voltage, current, and system performance, allowing efficient energy management for large systems. The Three Phase design ensures superior load distribution and smooth grid synchronization, making it a dependable grid tied solar inverter for industrial applications.

Built with advanced protection features such as overvoltage, overload, short circuit, and temperature control, it ensures safe and long-term operation. Its robust construction, easy installation, and low maintenance requirements make it a cost-effective choice for businesses. This industrial solar inverter helps reduce electricity costs significantly while improving return on investment, making it an ideal solution for sustainable and scalable solar energy systems.

Download Product Datasheet

Additional information

Max. Input Power

165kW

Max. DC Voltage

1100V

Start-up Voltage

180V

Nominal DC Voltage

600V

MPPT Voltage Range

200-1000V

No. of MPP Trackers

9

No. of PV Strings per MPP Tracker

2

Max. Input Current per MPP Tracker

32A

Max. Input Short-circuit Current

40A

Nominal Output Power

110kW

Max. AC Apparent Power

121kVa

Nominal AC Voltage

3L/N/PE, 220v/380, 230/400v

Max. Output Current

175A

Max. Efficiency

98.5%

European Efficiency

98.1%

MPPT Efficiency

99.9%

DC Surge Protection

Type II

AC Surge Protection

Type II

Protection Rating

Ip66

Dimensions

1040 x 700 x 350 mm

Weight

114Kg

Cooling

Intelligent Air Cooling

Operating Temperature Range

-25 to +60 C

Max. PV array oversizing

150%

Max. AC output overloading

110%

Communication

RS485, WIFI, 4G, and USB

High Efficiency & Yield

Features a maximum efficiency of 98.5% and 99.9% MPPT efficiency , utilizing SiC power components to maximize power generation

Large-Scale Compatibility

Supports 150% PV array oversizing, 110% AC output overloading , and 16A string current for compatibility with large bifacial modules

Robust & Safe Design

Equipped with an IP66 protection rating , C5 anti-corrosion rating , and integrated Type II AC/DC surge protection

Smart Management

Includes 9 MPP trackers and supports remote firmware updates and free online monitoring via RS485, WiFi, or 4G
