On-Grid Inverter

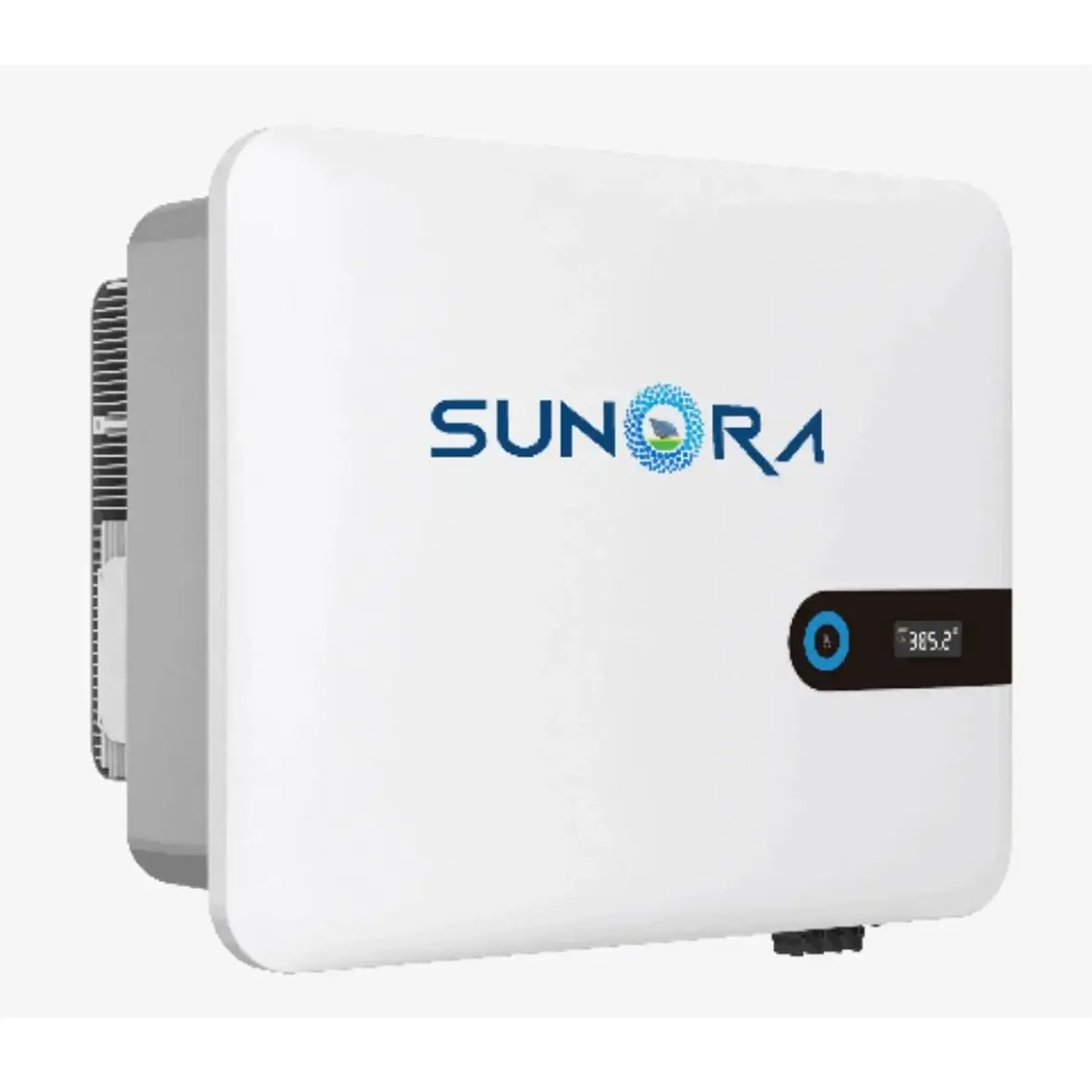

10 kW Sunora On-Grid inverter 3ph

Original price was: ₹53,083.00.Current price is: ₹47,775.00.(Inclusive of all taxes)

Quantity:

Warranty Assurance

Genuine Products

Direct Delivery

Certified Excellence

Warranty Information
10 Years Unconditional warranty
Share:
Standards & Certifications
View More

Description

The 10 kW Sunora On-Grid Solar Inverter 3 Phase is a high-efficiency power solution designed for seamless grid-tied solar systems. This 10 kW on grid solar inverter 3 phase is ideal for commercial and industrial applications, ensuring stable and efficient energy conversion. Equipped with advanced MPPT technology, it continuously tracks solar input to deliver maximum output even in changing sunlight conditions.

This 3 Phase solar inverter supports real-time monitoring of voltage, current, and performance, helping users manage energy efficiently. The Three Phase design ensures better load handling and smooth grid synchronization, making it a reliable grid tied solar inverter for consistent power supply.

Built with advanced safety features such as overvoltage, overload, short circuit, and temperature protection, it guarantees safe and long-lasting operation. With durable construction, easy installation, and low maintenance requirements, this 10kW 3 Phase solar inverter helps reduce electricity bills while improving return on investment. Perfect for businesses looking for a powerful and efficient solar solution.

Download Product Datasheet

Additional information

Max. Recommended PV Power

18 kW (supports up to 150% DC overload)
Max. DC Voltage

1100 V
MPPT Voltage Range

140–1000 V
Start-up Voltage

180 V
No. of MPP Trackers

2
Max. Input Current per MPPT

32 A
AC Nominal Power

10 kW
Max. AC Apparent Power

13.2 kVA
Max. Output Current

19.1 A
Nominal AC Voltage

230V / 400V (Range: 340–440V)
Max. Efficiency

98.60%
Dimensions

440 x 370 x 140 mm
Weight

19 kg
Protection Degree

IP68 (Highly resistant to dust and water)
Operating Temperature

-25°C to +60°C (Derating starts above 45°C)
Communication

RS485/USB standard; Optional WiFi, 4G, or Ethernet
Warranty

10 Years
High Efficiency & Performance

Features a 99.9% MPPT efficiency and supports 150% DC overload to maximize energy harvest
Robust & Compact Build

ffers a lightweight 13 kg design with an IP68 protection rating for superior durability against the elements
Advanced Safety & Control

Includes Type II AC/DC surge protection and a feed-in limitation function to manage power export to the grid
