10 kW Sunora Hybrid Inverter 3ph

Description

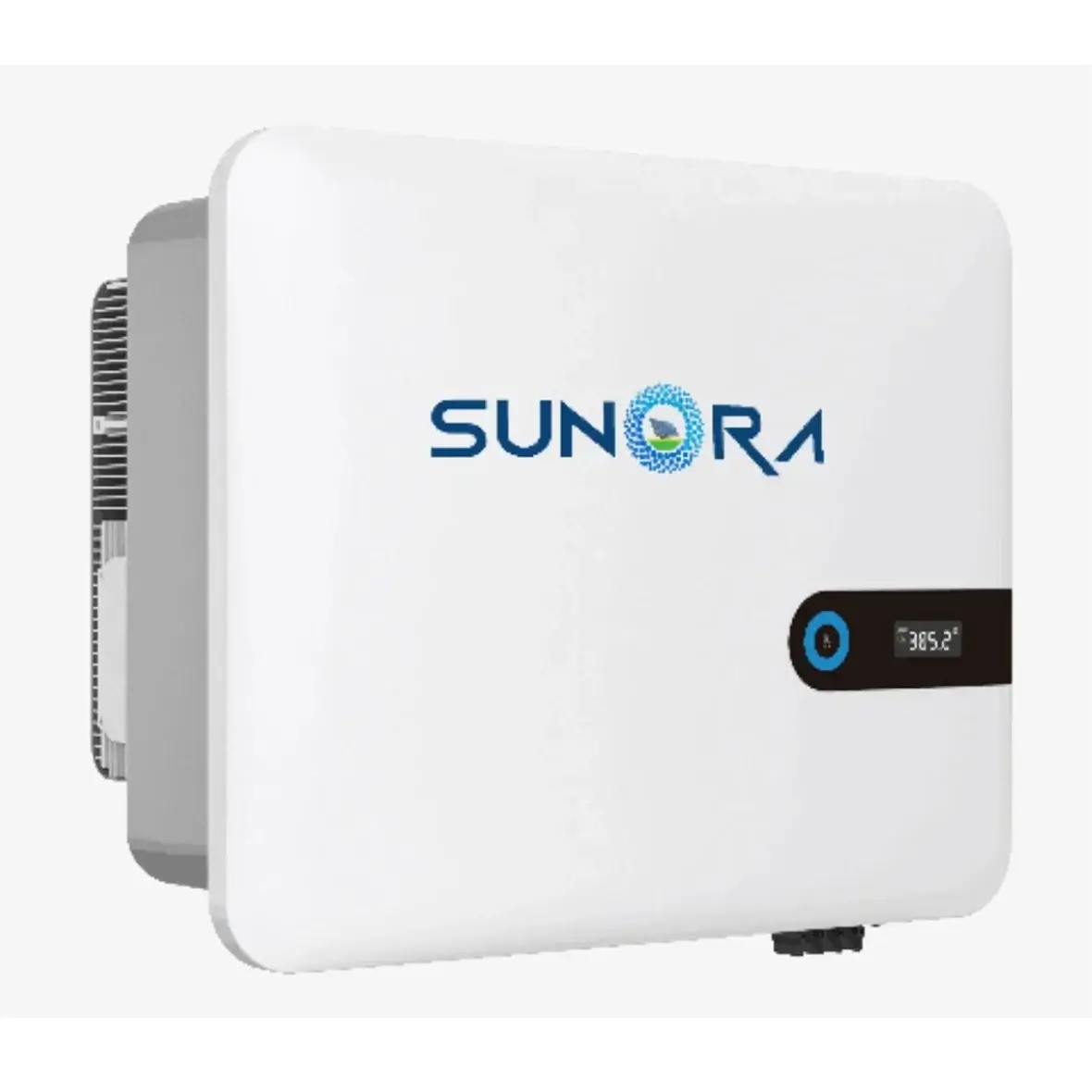

Sunora Solar 10kW Three Phase Hybrid Inverter
Download Product Datasheet

Recommended Max. PV Input Power	15,000 Wp
Max. Input Voltage	1,000 V
Start-up Voltage	135 V
Rated Input Voltage	600 V
MPPT Input Voltage Range	135–900 V

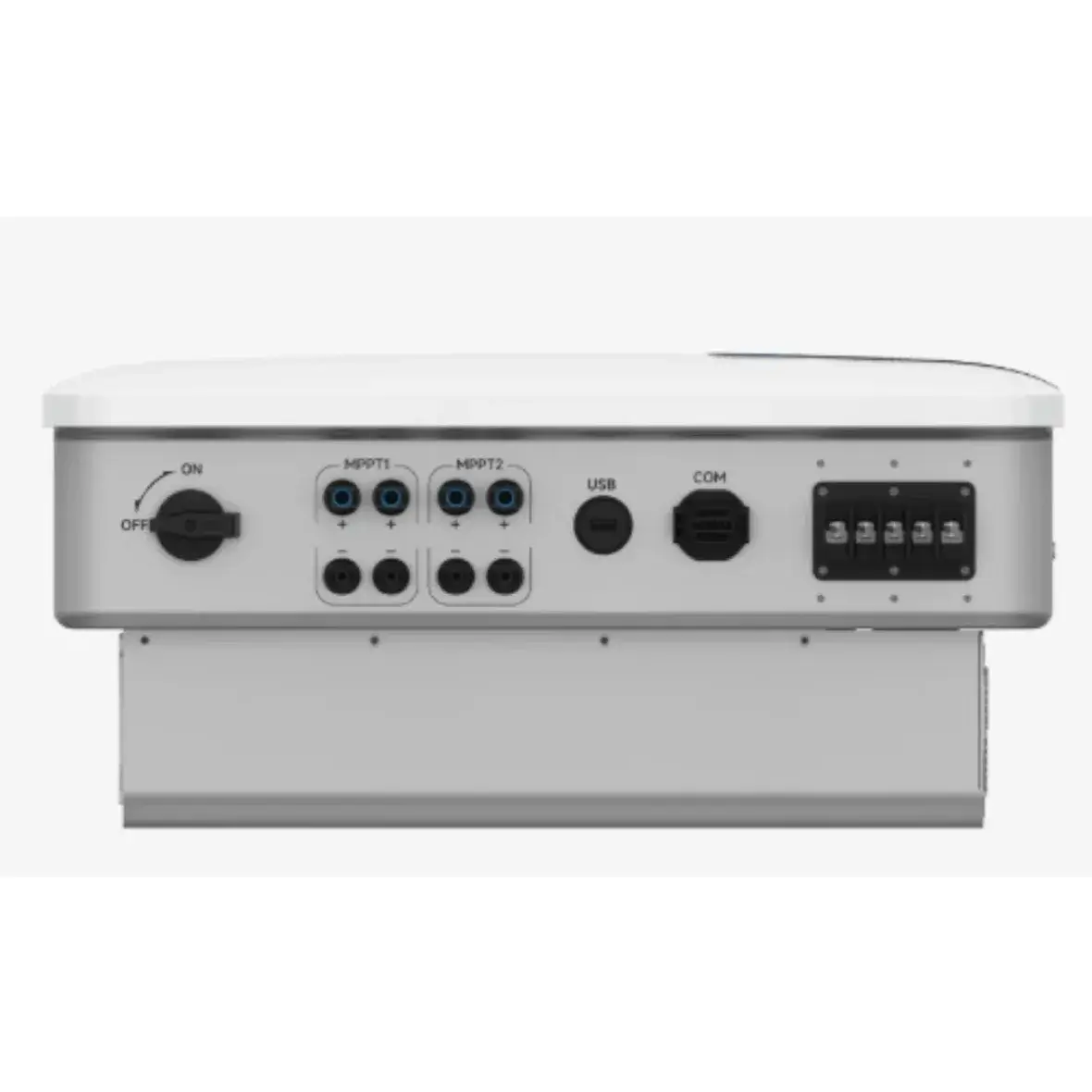

No. of MPPT / Strings per MPPT	2 / (1/2)
Max. MPPT Input Current	16 A / 32 A
MPPT Short-circuit Current	20 A / 40 A
Max. Input Apparent Power	20,000 VA
Rated AC Voltage	3L/N/PE, 220/380 V, 230/400 V, 240/415 V
Rated Output Current	14.5 A
Max. Input/Output Current	30.3 / 19.7 A
Rated Output Power	10,000 W
Max. Output Apparent Power	10,000 VA
On-grid/Off-grid Switching Time	< 10 ms
Battery Voltage Range	135–800 V
Max. Charge/Discharge Power	12,500 W / 11,000 W
Max. Charge/Discharge Current	25 A / 25 A
Compatible Battery Types	Li-ion and Lead-acid
Max. Efficiency	97.6%
MPPT Efficiency	99.9%
Integrated Protection	Anti-islanding, DC Reverse Polarity, DC Circuit Breaker, Insulation Resistor Detection
Surge Protection	DC Type II / AC Type II
Dimensions (W x H x D)	510 x 442 x 222 mm
Weight	24 kg
Operating Temperature	-30°C to 60°C
Protection Rating	IP65

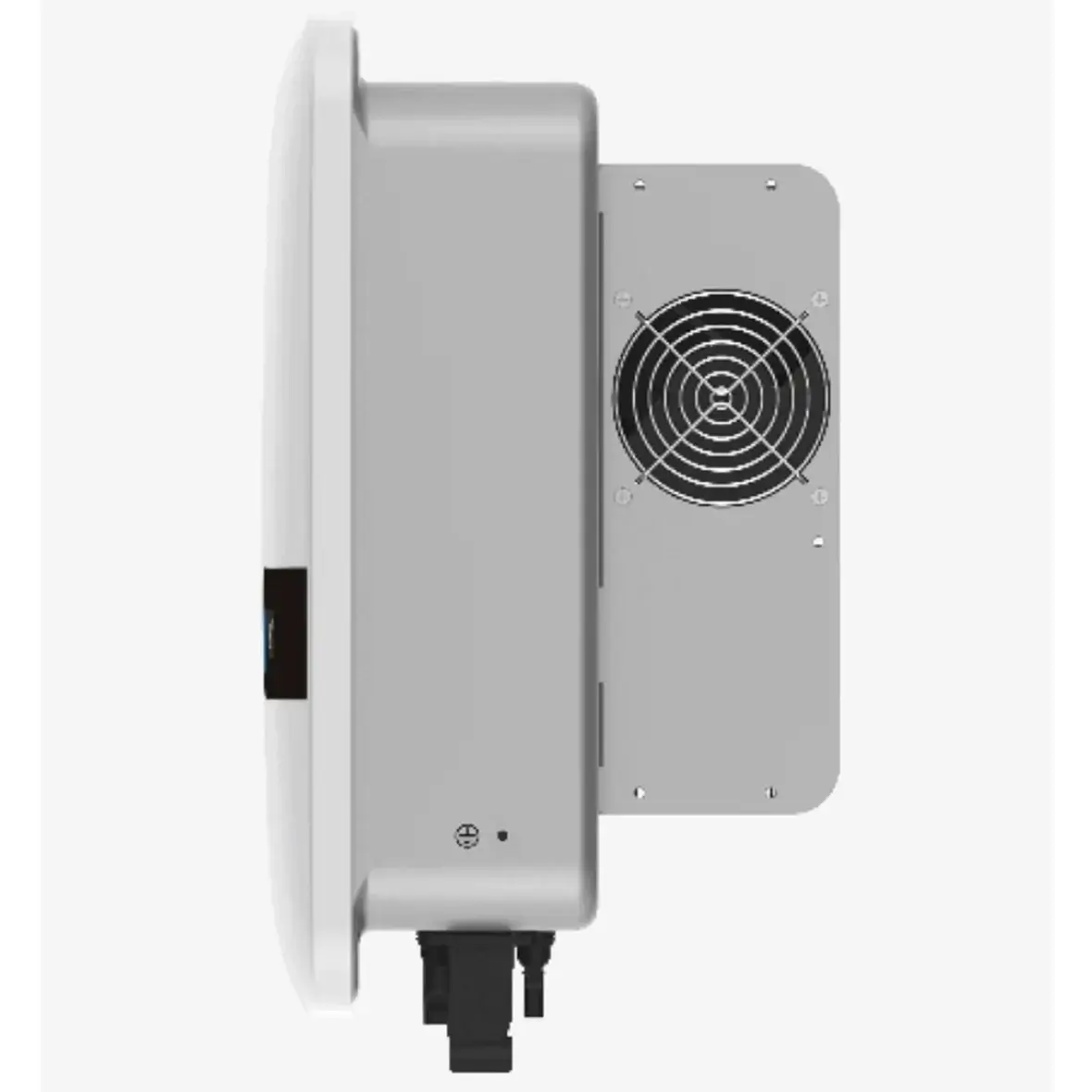

Cooling	Smart Cooling
Warranty	10 Years
Smart Management	Programmable supply priority for PV, Battery, or Grid
Generator Support	Supports diesel generators to charge the battery directly
Monitoring	Smartphone-enabled commissioning via WiFi/App with an LCD touchscreen color panel
Protection	Anti-islanding, DC Reverse Polarity, DC Circuit Breaker, Insulation Resistor Detection, and Surge Protection (Type II DC/AC)
