SUNORA 520Wp Mono Perc Bifacial DCR

Description

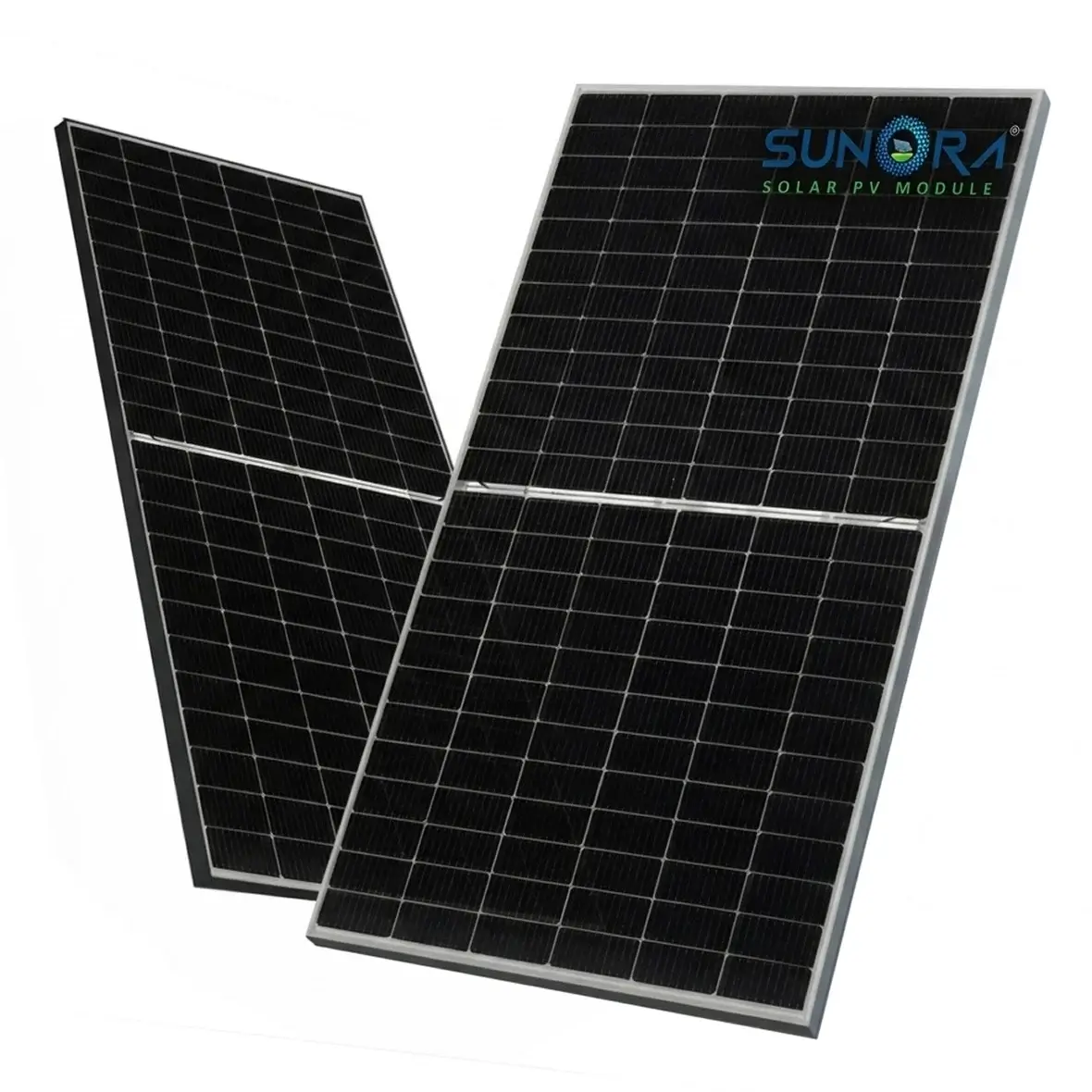

Sunora 520Wp 144Cells Monocrystalline Bifacial Module
Download Product Datasheet

Solar Cells	144 monocrystalline Silicon(PERC), Multi BB
Encapsulation	Ultra – clear PID free EVA (Ethylene-Vinyl-Acetate)
Backside	Backsheet
Frame	Silver Anodized Aluminium Alloy
Front Glass	3.2mm, High Transmission, AR Coated Tempered Glass
Dimensions	(L) 2278 mm x (W) 1133 mm x (H) 35mm
Weight	~28 Kg

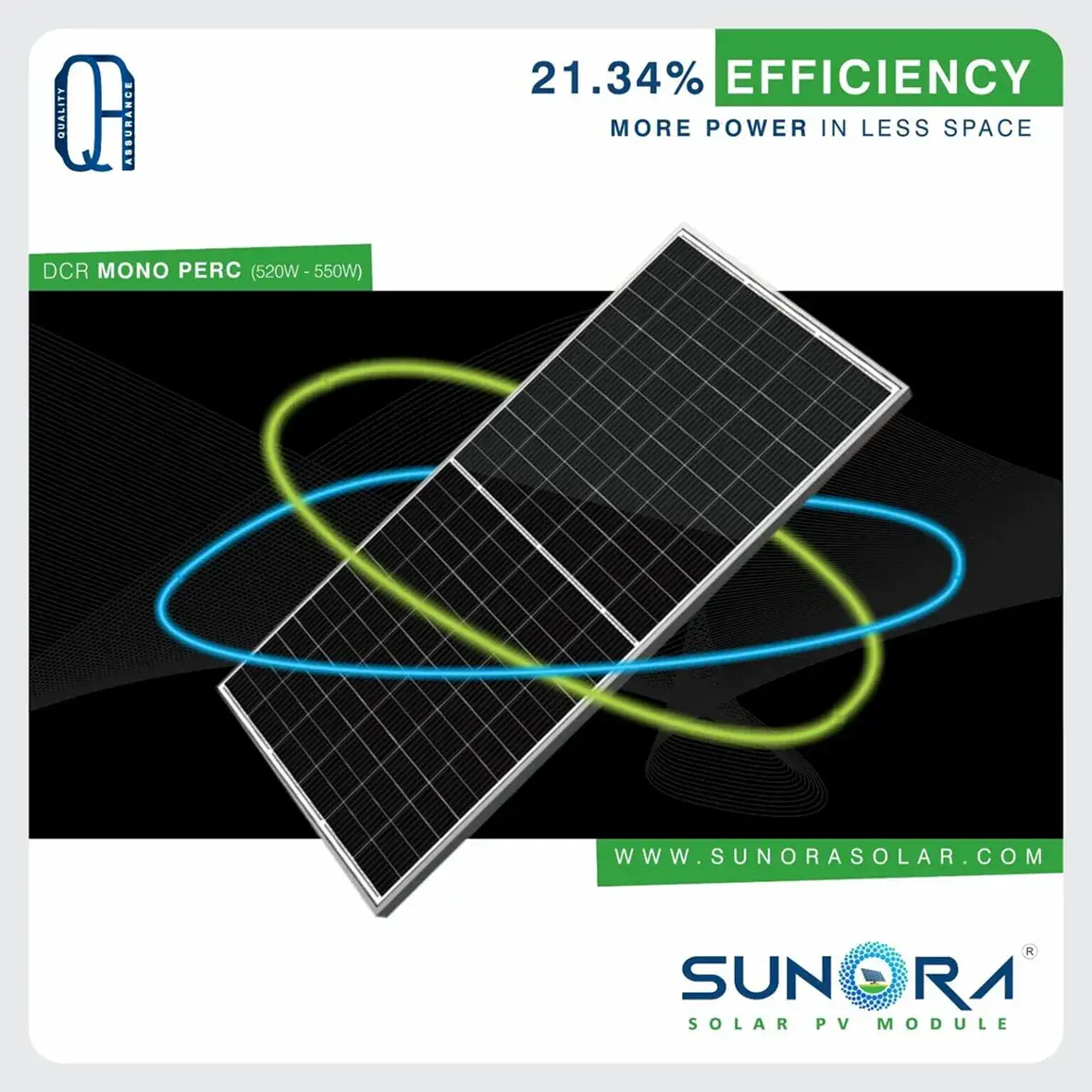

Efficiency	21.34%
J-box	IP 68 certified, 3 diodes, Split junction box
Series Fuse Rating	25 A
Cable	Solar cable 400 mm length
Connectors	MC4 compatible connectors
Application Class	Class A
Electrical Safety	Class II
Fire Safety	Class C (Type 1)
Mechanical Load	Snow load 5400 Pa, Wind load 2400 pa
Operational Temperature	-40°C ~ +85°C
Power Output Tolerance	0 ~ +5 W
Voc and Isc Tolerance	±3%
Maximum System Voltage	DC1500V (IEC/UL)
Maximum Series Fuse Rating	25A
Nominal Operating Cell Temperature	45±2°C
Safety Protection Class	Class II
Fire Rating	UL type 3
