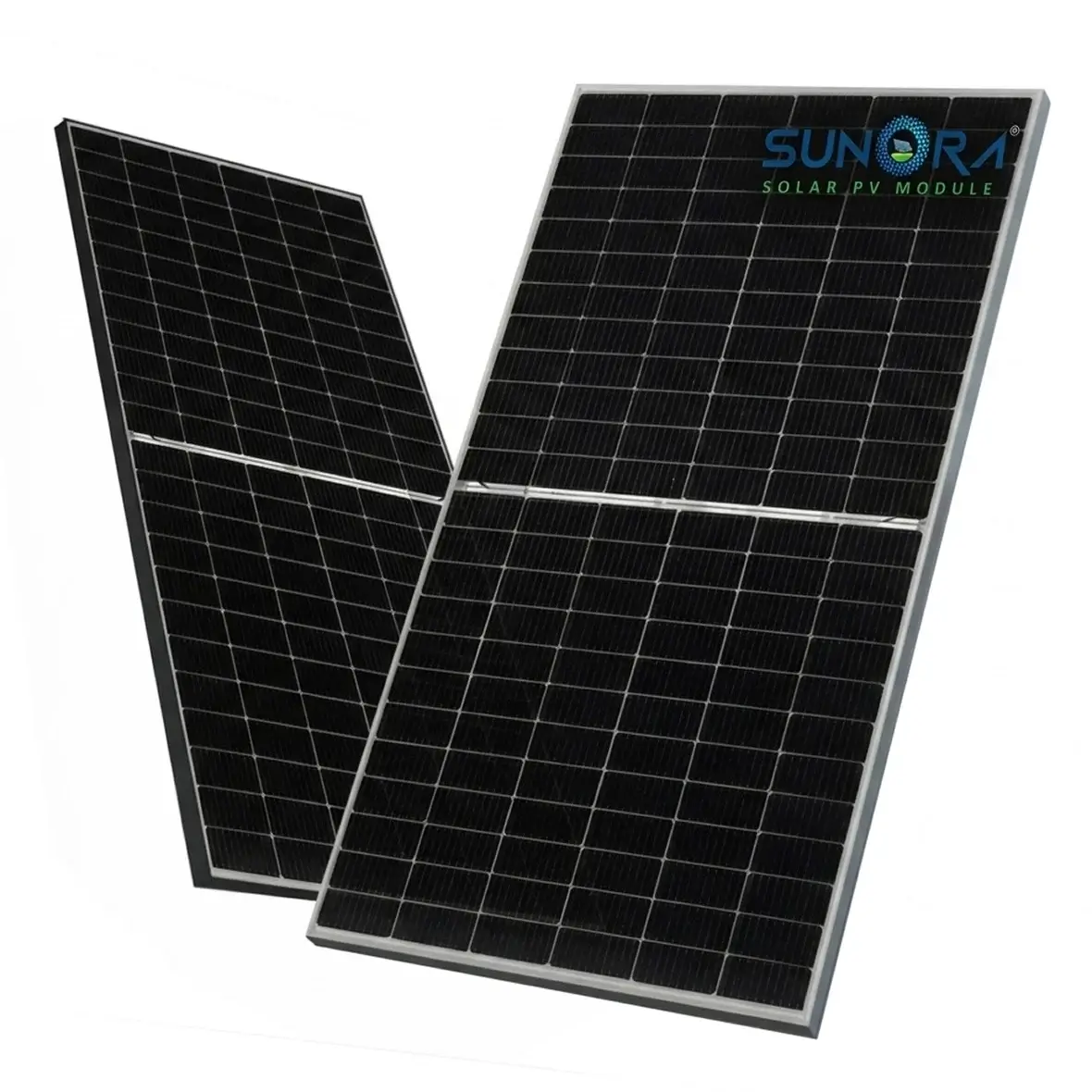

Sunora 500Wp 132Cells Monocrystalline Bifacial Module
Download Product Datasheet
Original price was: ₹12,474.00.₹11,340.00Current price is: ₹11,340.00.(Exclusive of all taxes)
Quantity:
Warranty Assurance
Genuine Products
Direct Delivery
Certified Excellence
30 Years Performance
Sunora 500Wp 132Cells Monocrystalline Bifacial Module
Download Product Datasheet
| Solar Cells | 132 monocrystalline Silicon(PERC), Multi BB |
|---|---|
| Encapsulation | Ultra – clear PID free EVA (Ethylene-Vinyl-Acetate) |
| Backside | Backsheet |
| Frame | Silver Anodized Aluminium Alloy |
| Front Glass | 3.2mm, High Transmission, AR Coated Tempered Glass |
| Dimensions | (L) 2094mm x (w) 1133mm x (H) 30mm |
| Weight | 26.05Kg |
| Efficiency | 21.08% |
| J-box | IP 68 certified, 3 diodes, Split junction box |
| Series Fuse Rating | 25 A |
| Cable | Solar cable 400 mm length |
| Connectors | MC4 compatible connectors |
| Application Class | Class A |
| Electrical Safety | Class II |
| Fire Safety | Class C (Type 1) |
| Mechanical Load | Snow load 5400 Pa, Wind load 2400 pa |
| Operational Temperature | -40°C ~ +85°C |
| Power Output Tolerance | 0 ~ +5 W |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2°C |
| Safety Protection Class | Class II |
| Fire Rating | UL type 3 |
