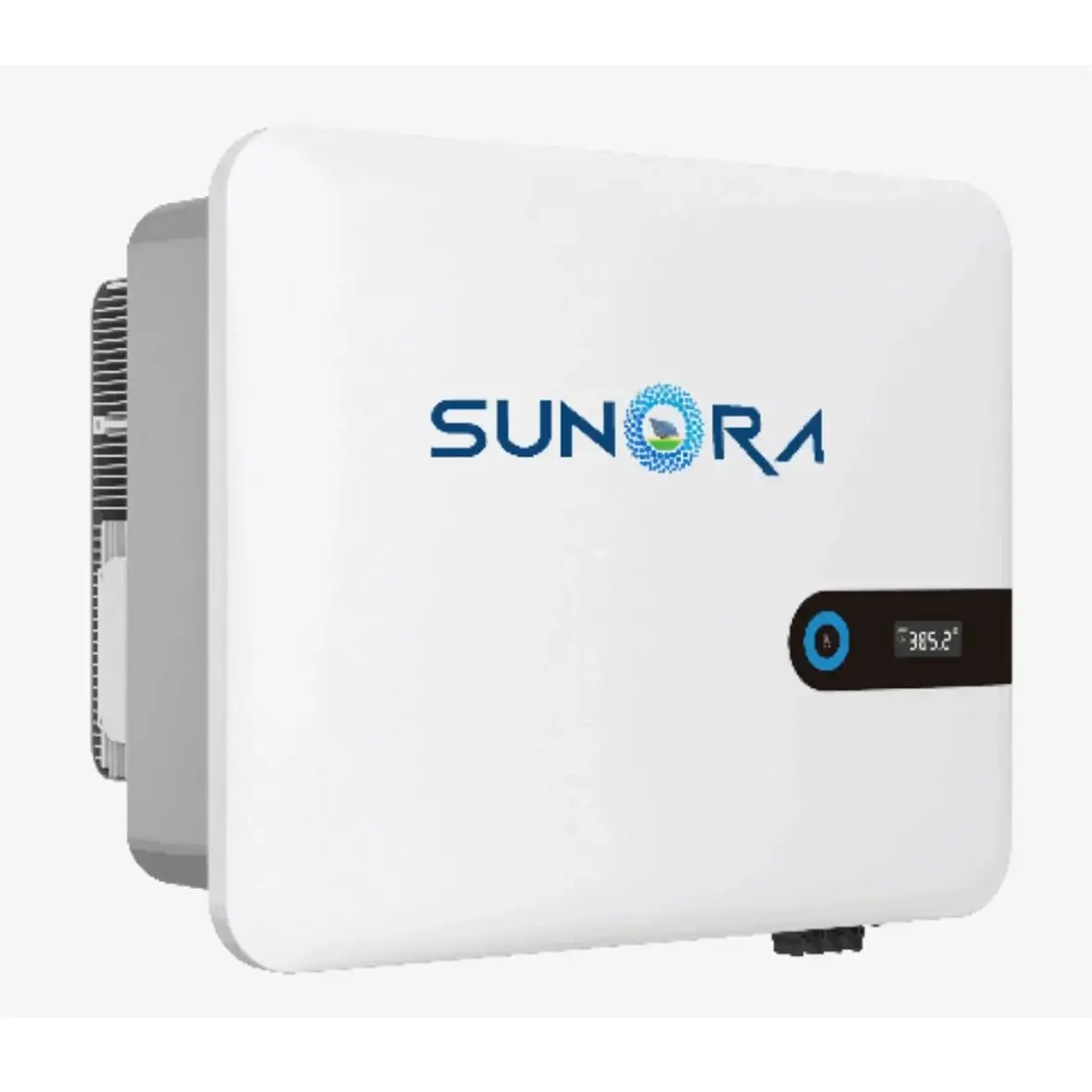

5 kW Sunora Hybrid Inverter 3ph

Description

Sunora Solar 5kW Three Phase Hybrid Inverter
Download Product Datasheet

Recommended Max. PV Input Power	7500 Wp
Max. Input Voltage	1000 V
Start-up Voltage	135 V
Rated Input Voltage	600 V
MPPT Input Voltage Range	135–900 V
No. of MPPT / Strings per MPPT	2 MPPTs / 1 string per MPPT
Max. Input / Short-circuit Current	16A / 20A
Rated Output Power	5000 W
Max. Output Apparent Power	5500 VA
Rated AC Voltage	3L/, 220/380V, 230/400V, 240/415V
Rated Output Current	7.2 A
Max. Input/Output Current	11.8 A
Max. Output Current	9.8 A
On-grid/Off-grid Switching Time	<10 ms
Overload Capability	130% max back-up output overloading for 60 seconds
Battery Voltage Range	135–800 V
Max. Charge/Discharge Power	12500 W / 5500 W
Max. Charge/Discharge Current	25 A / 25 A
Battery Compatibility	Li-ion and lead-acid batteries
Max. Efficiency	97.6%
MPPT Efficiency	99.9%
Surge Protection	DC Type II / AC Type II
Dimensions (WxHxD)	510 x 442 x 222 mm
Weight	24 kg
Cooling	Smart Cooling
Protection Rating	IP65
Communication	CAN/RS485, with optional WiFi/USB
Warranty	10 Years
Integrated Protection	Anti-islanding, DC Reverse Polarity, DC Circuit Breaker, and Insulation Resistor Detection
Smart Management & Versatility	It includes an LCD touchscreen color panel for easy data management , supports remote firmware updates , and is compatible with both Lithium-ion and Lead-acid batteries
High Efficiency & Solar Support	It offers a maximum efficiency of 97.6% and supports up to 7500 Wp of PV input power , making it compatible with high-power solar modules
